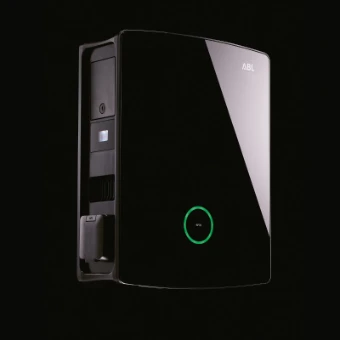

Charging device for electric vehicles ABL eMobility
Add to selection
General information
Ordercode YESSS
3098-7615
Product code
100000181
EAN code
04011721191386
Product group
Charging device for electric vehicles
Brand
ABL eMobility
Product specifications
Installation side connection model
3-phase
Number of charging units
2
Max. power per charging point
22 kW
Nominal connection power
22 kW
Width
428 mm
Height
516 mm
Depth
145 mm
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
2
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of CEE socket outlets (IEC 60309)
0
Number of household socket outlets
0
With house connection box
No
Number of earth leakage circuit breakers type A
2
Number of earth leakage circuit breakers type B
0
With miniature circuit breaker (MCB)
No
With energy meter
Yes
Housing material
Plastic
Degree of protection (IP)
IP55
Impact strength
IK10
With display
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Input voltage
230 - 400 V
Frequency
50 Hz
Charging cable permanently lockable at charging device
Yes
DC residual current detection
Yes
Contactor welding detection
Yes
Network-enabled as a master
No
Network-enabled as an extender
Yes
Networkable via LAN
Yes
Networkable via Wi-Fi
Yes
Mobile communications standard 5G
No
With key switch
No
With built-in RFID card reader
Yes
NFC (Near Field Communication)
No
Static load management integrated
Yes
Suitable for dynamic load management
Yes
OpenChargePointProtocoll (OCPP) version
1.6
Plug and charge (ISO 15118)
Yes
Operation and configuration by app
Yes
Export of charging logs
No
Connectable conductor cross section
2.5 - 13 mm²
Backend included
Yes
With MID compliant energy meter
Yes
Calibration law compliant
No
