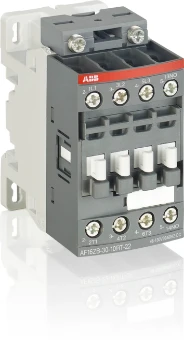

Power contactor, AC switching ABB Componenten
Add to selection
General information
Ordercode YESSS
3116-3796
Product code
1SBL156060R2110
EAN code
03471523127913
Product group
Power contactor, AC switching
Brand
ABB Componenten
Product specifications
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Rated control supply voltage DC
20 - 20 V
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-1, 400 V
28 A
Rated operation current Ie at AC-3, 400 V
12 A
Rated operation power at AC-3, 400 V
5.5 kW
Rated operation power NEMA
3.729 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
0
Type of electrical connection of main circuit
Other
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Operating voltage AC 50 Hz
690 - 690 V
Operating voltage AC 60 Hz
690 - 690 V
Width
45 mm
Height
86 mm
Depth
77 mm
