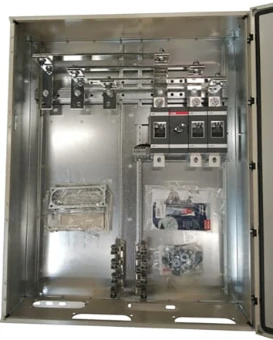

Switch disconnector (AC) ABB Componenten
Add to selection
General information
Ordercode YESSS
3116-3798
Product code
1SCA022340R2550
EAN code
06417019116471
Product group
Switch disconnector (AC)
Brand
ABB Componenten
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
1000 V
Rated operating voltage
1000 - 1000 V
Rated permanent current Iu
570 A
Rated permanent current at AC-23, 400 V
570 A
Rated short-time withstand current lcw
20 kA
Rated operation power at AC-23, 400 V
315 kW
Switching power at 400 V
315 kW
Number of poles
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
2
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Colour control element
Black
Type of control element
Long rotary handle
Interlockable
Yes
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
Other
Width
800 mm
Height
1000 mm
Depth
230 mm
